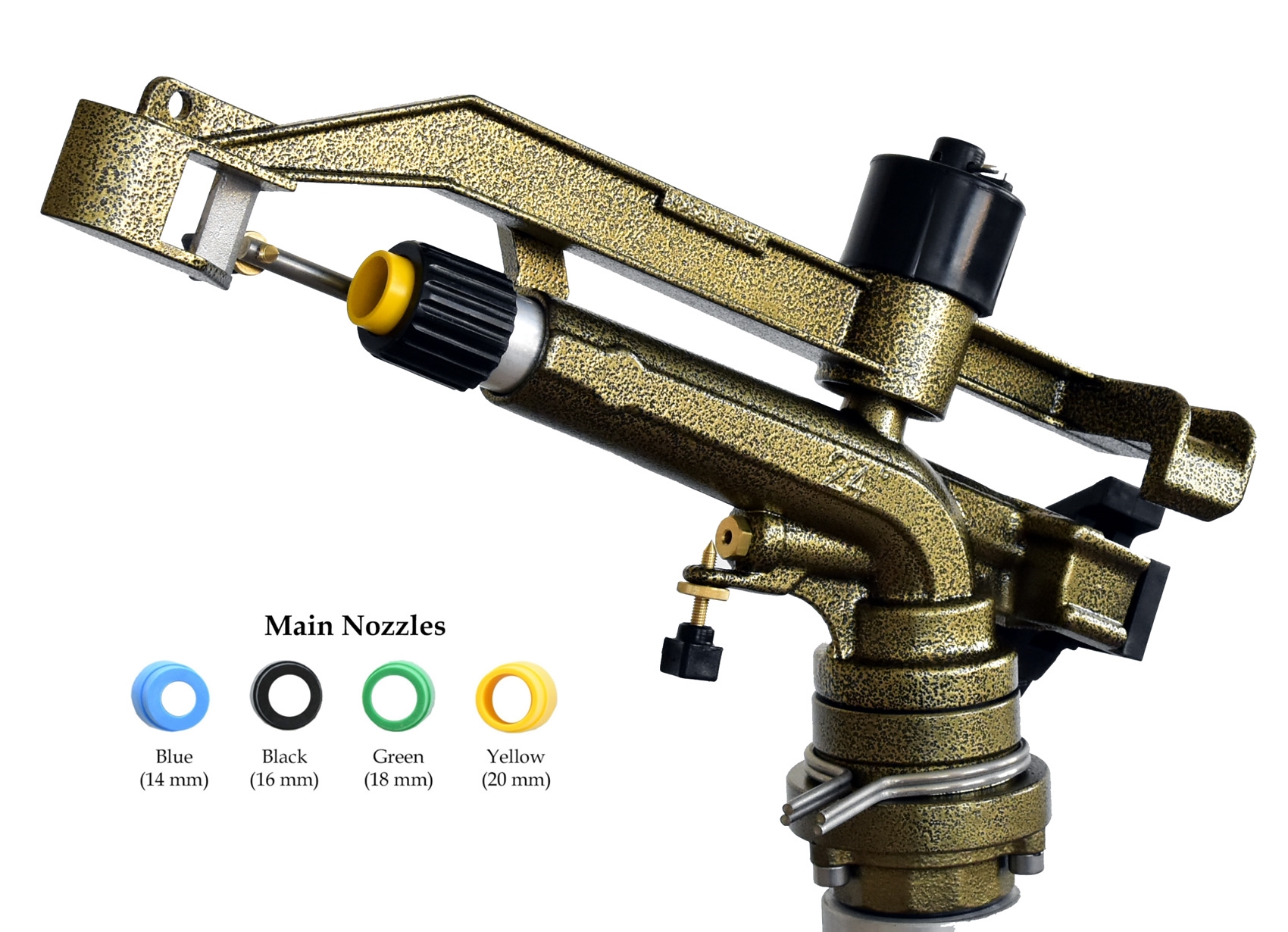

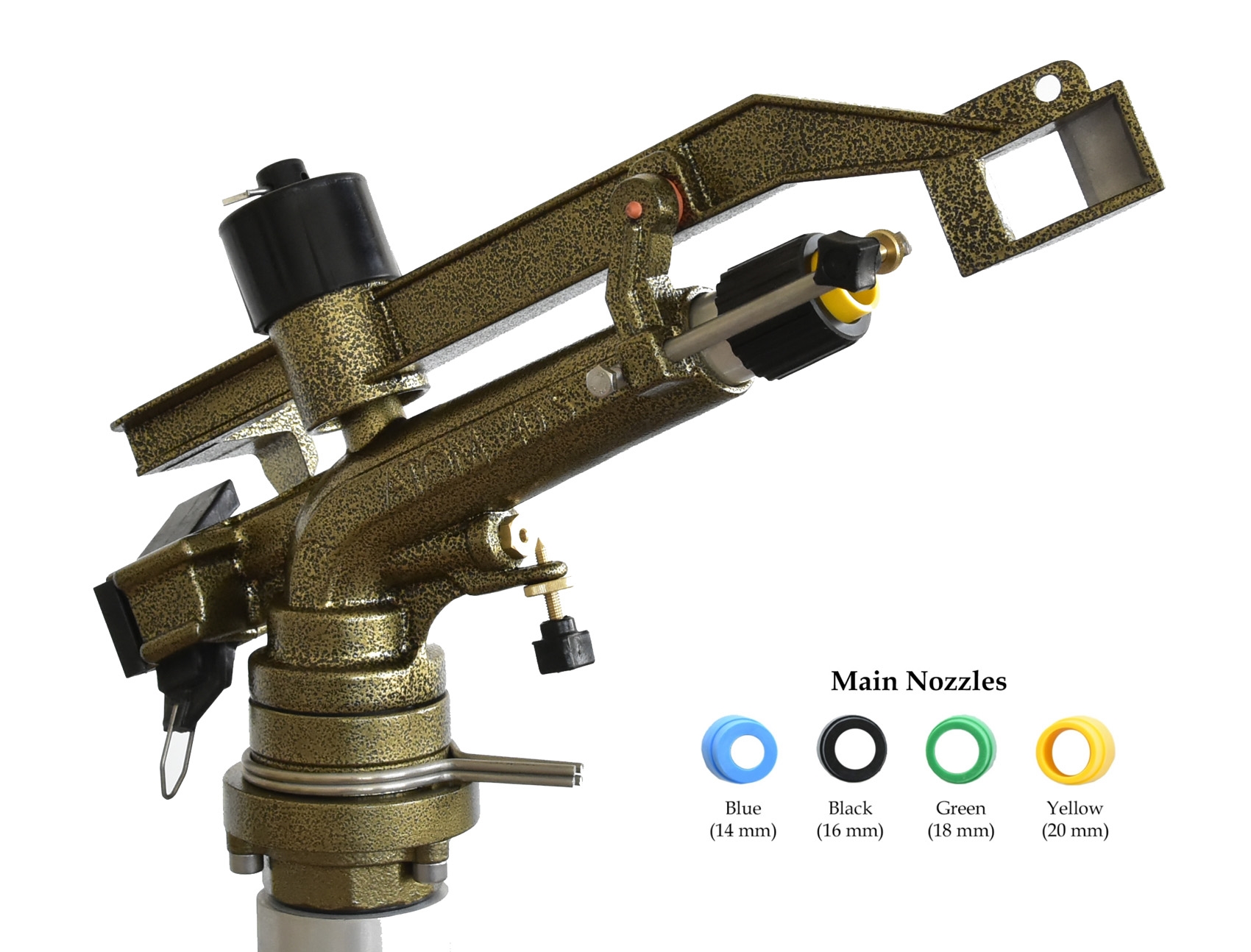

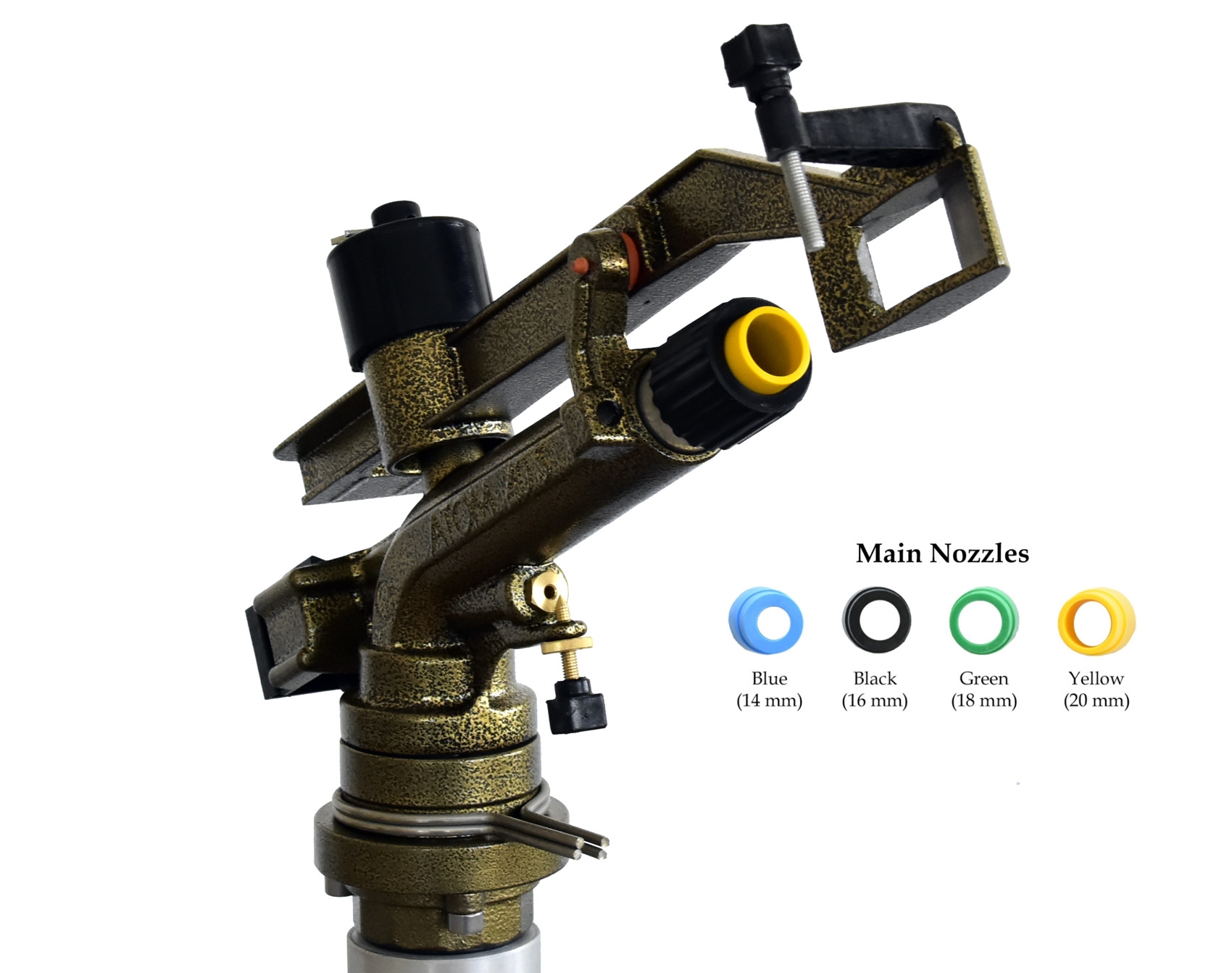

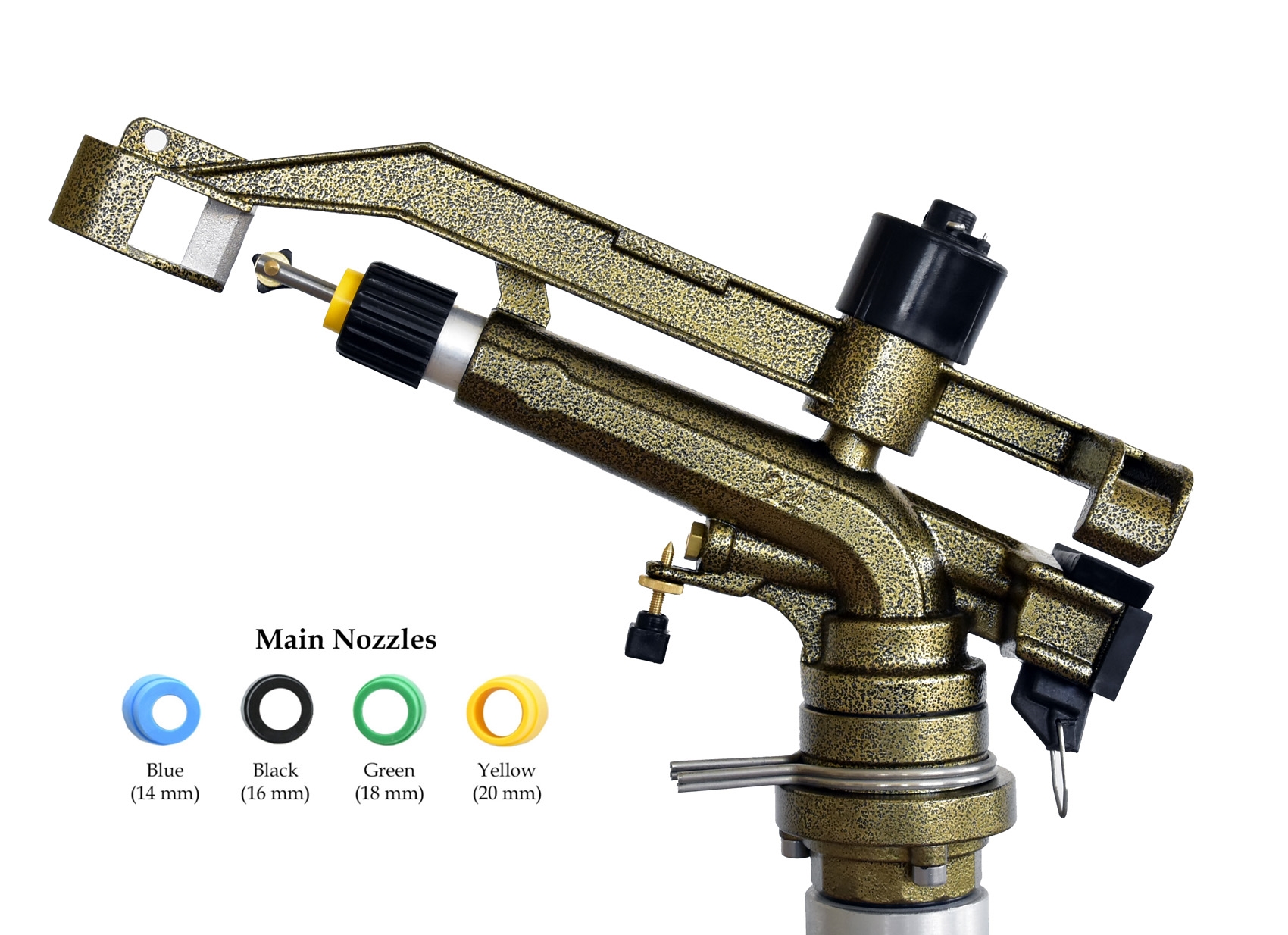

Atom40S

Usable Nozzle Diameter Range
14 mm – 20 mm
Water Consumption Range
11 m3/h – 32 m3/h
Shooting Radius Range
22meter – 39meter
Body Angle
24°

Highly efficient sprinkler rotating in full circle or partial circle, impact-type, operating at medium pressure (2.0 – 5 atm) Thanks to replaceable sprinkler nozzles and adjustable breaker, it ensures you to irrigate your field with minimum water and excellent uniform water distribution. It is excellent for agricultural, mining, dust control, stationary and portable systems. This version has aluminium main body with rotating mechanism of lower body made of brass, Teflon and stainless steel. It is equipped with specially designed and adjustable breaker. Lower body is specially designed for sandy water. Specially designed breaker has licence certificate. Additionally, it has a second nozzle outlet that may be plugged at low pressure. With its specially designed low body angle made of Teflon and brass, this product may also operate with waste water.

Nozzle Diameter Pressure Jet Length Capacity Irrigated Area Rainfall Per Hour
mm inch kg/cm2 lbs/inch m feet I/min m3/h G.P.M m2 acre mm/h
14 0,47 2 29 22,0 72 195 11,7 52 1520 0,38 7,7
14 0,47 3 44 27,0 89 239 14,3 63 2289 0,57 6,2
14 0,47 4 56 30,0 98 277 16,6 73 2826 0,70 5,9
14 0,47 5 70 33,0 108 309 18,5 81 3419 0,84 5,4
16 0,55 2 29 23,0 75 247 14,8 65 1661 0,41 8,9
16 0,55 3 44 29,0 95 303 18,2 80 2641 0,65 6,9
16 0,55 4 56 33,0 108 351 21,0 92 3419 0,84 6,1
16 0,55 5 70 35,0 115 391 23,4 103 3847 0,95 6,1
18 0,62 2 29 22,0 72 309 18,5 81 1520 0,38 12,2
18 0,62 3 44 30,0 98 378 22,7 100 2826 0,70 8,0
18 0,62 4 56 33,0 108 436 26,2 115 3419 0,84 7,7
18 0,62 5 70 36,0 118 487 29,2 129 4069 1,01 7,2
20 0,70 3 44 31,0 102 376 22,5 99 3018 0,75 7,5
20 0,70 4 56 35,0 115 460 27,6 122 3847 0,95 7,2
20 0,70 5 70 39,0 128 532 31,9 140 4776 1,18 6,7
