Atom35

Usable Nozzle Diameter Range
12 mm – 18 mm
Water Consumption Range
9 m3/h – 32 m3/h
Shooting Radius Range
20meter – 35meter
Body Angle
27°

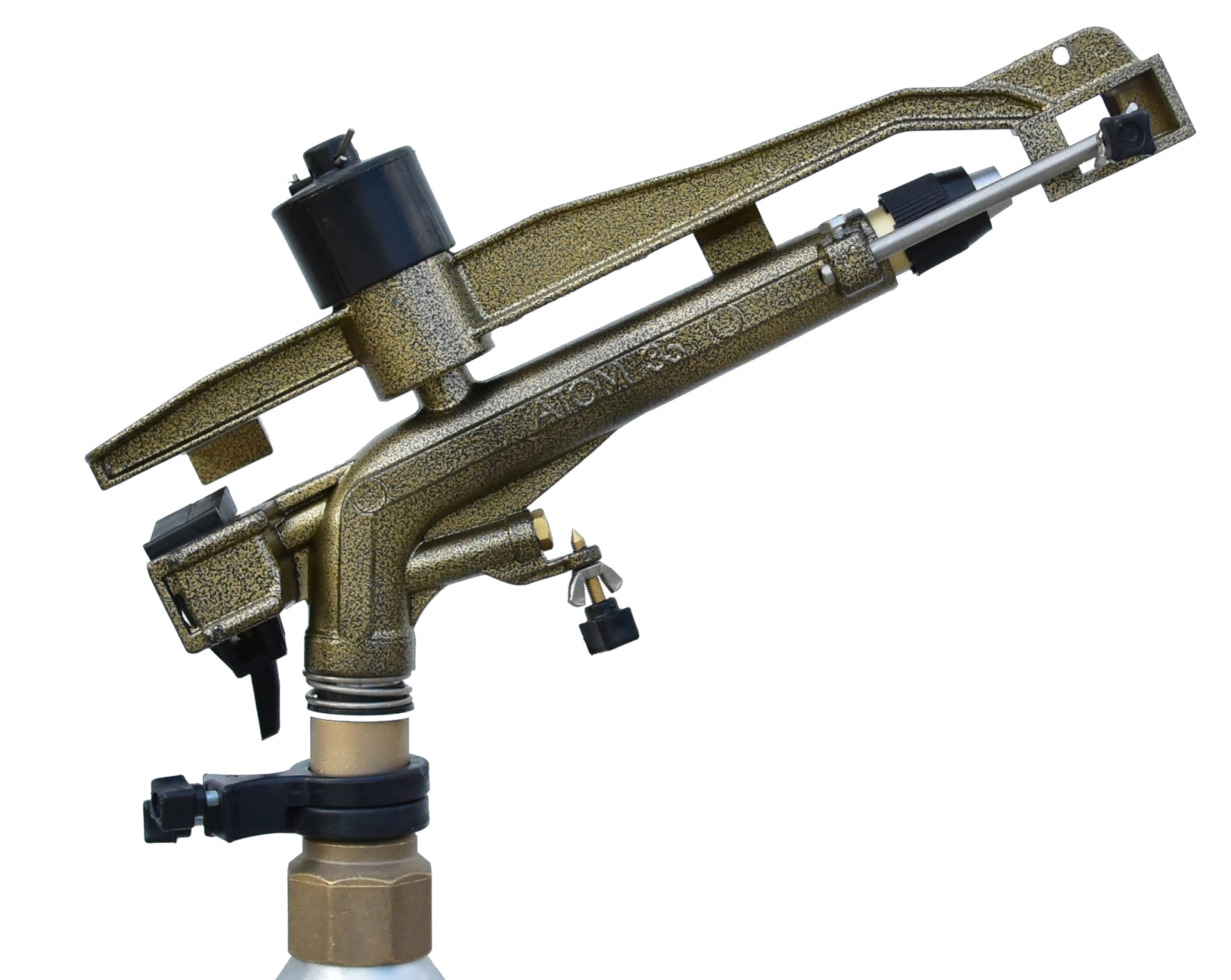

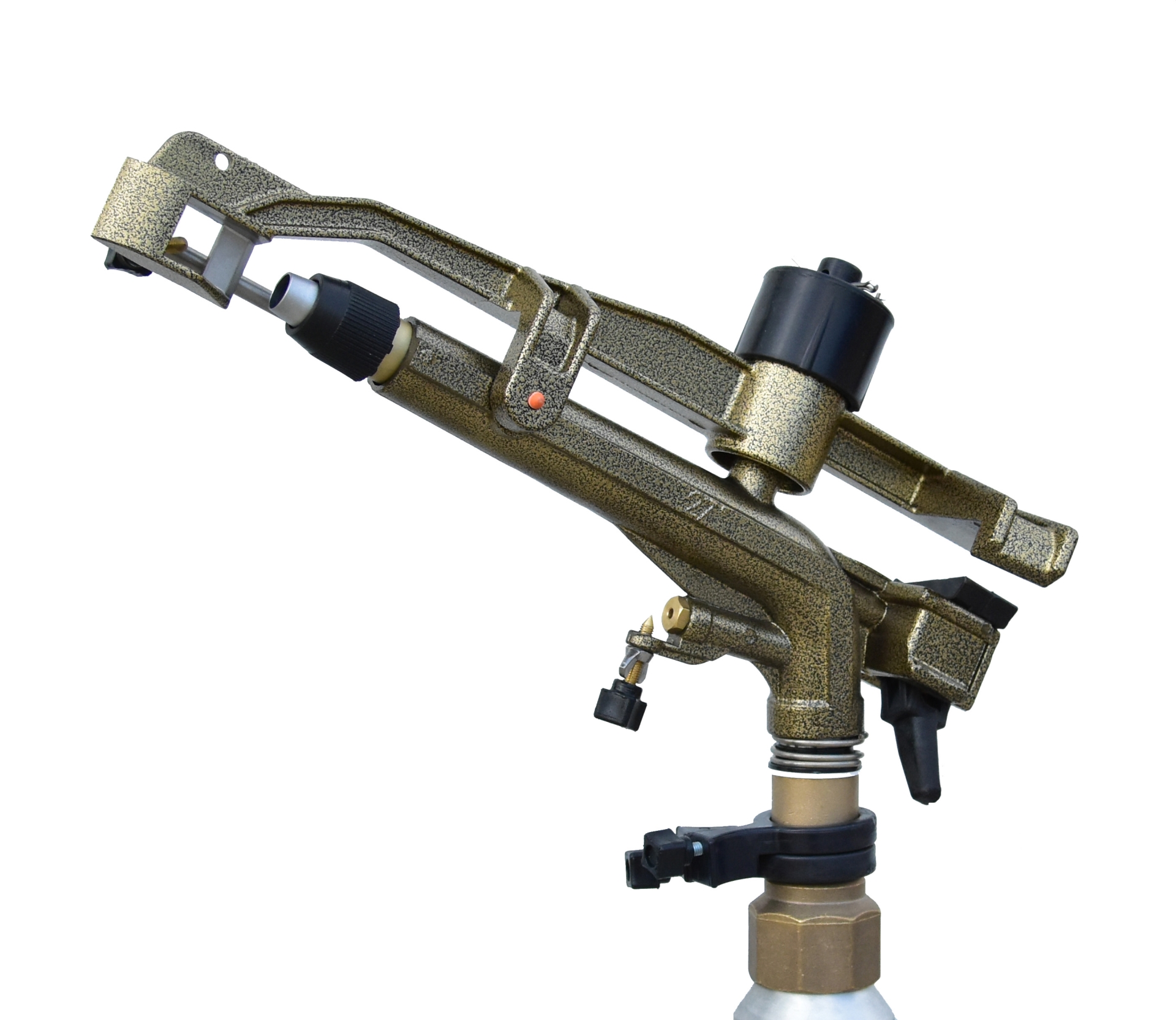

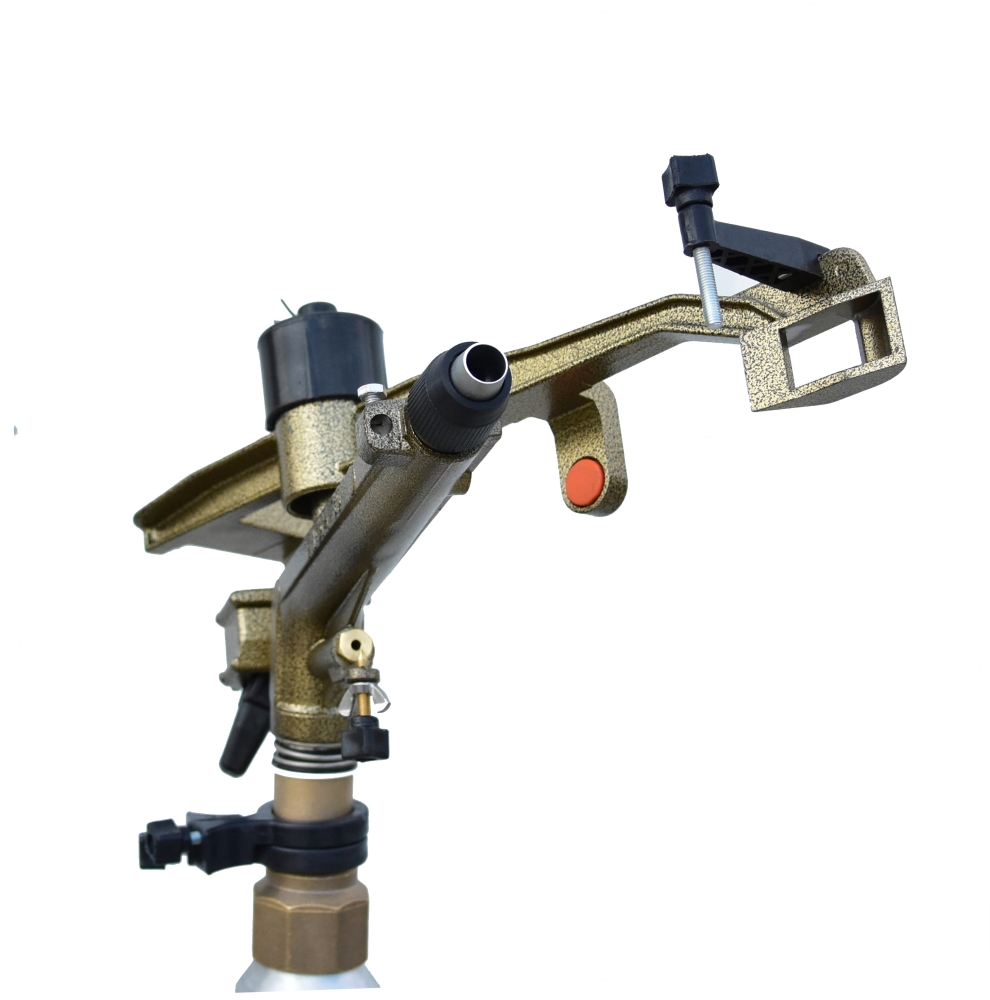

Highly efficient sprinkler rotating in full circle or partial circle, impact-type, operating at medium pressure (2.0 – 6 atm) Thanks to replaceable sprinkler ends and adjustable water breaker, it ensures you to irrigate your field with uniform water distribution. It is appropriate to use for dust control at roadsides, mines, construction sites and coal depots. Main body and scoop is aluminium with lower rotating mechanism made of brass, Teflon and stainless steel. It is equipped with a system allowing use of standard stationary breaker or licenced moving breaker. Moving breaker breaks water without preventing it to reach long distances. Thanks to the setting mechanism on the breaker, water may be broken less or more. With the blind plug that comes with it as standard, the second hole for irrigation of short distances can be plugged. And this allows less water consumption.

Nozzle Diameter Pressure Jet Length Capacity Irrigated Area Rainfall Per Hour
mm inch kg/cm2 lbs/inch m feet I/min m3/h G.P.M m2 acre mm/h
12 0,47 2 29 20,0 66 155 9,3 41 1256 0,31 7,4
12 0,47 3 44 24,0 79 186,7 11,2 49 1809 0,45 6,2
12 0,47 4 56 27,0 89 216,7 13,0 57 2289 0,57 5,7
12 0,47 5 70 28,0 92 236,7 14,2 63 2462 0,61 5,8
14 0,55 2 29 21,0 69 201,7 12,1 53 1385 0,34 8,7
14 0,55 3 44 25,0 82 241,7 14,5 64 1963 0,48 7,4
14 0,55 4 56 29,0 95 281,7 16,9 74 2641 0,65 6,4
14 0,55 5 70 30,0 98 315 18,9 83 2826 0,70 6,7
16 0,62 2 29 22,0 72 253,3 15,2 67 1520 0,38 10,0
16 0,62 3 44 26,0 85 315 18,9 83 2123 0,52 8,9
16 0,62 4 56 30,0 98 358,3 21,5 95 2826 0,70 7,6
16 0,62 5 70 32,0 105 400 24,0 106 3215 0,79 7,5
18 0,70 3 44 27,0 89 385 23,1 102 2289 0,57 10,1
18 0,70 4 56 30,0 98 450 27,0 119 2826 0,70 9,6
18 0,70 5 70 34,0 112 501,7 30,1 133 3630 0,90 8,3
18 0,70 6 85 35,0 115 541,7 32,5 143 3847 0,95 8,4
