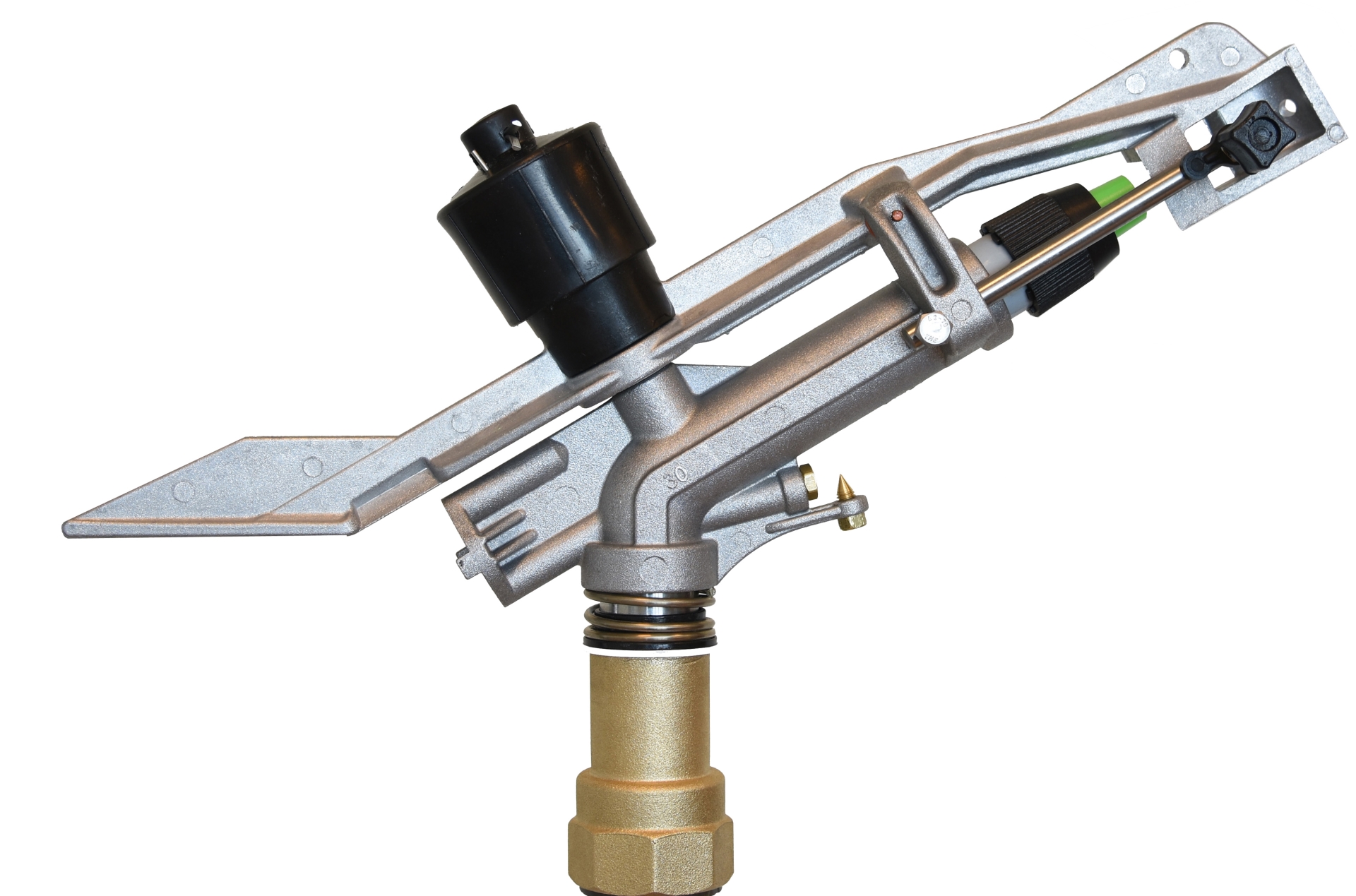

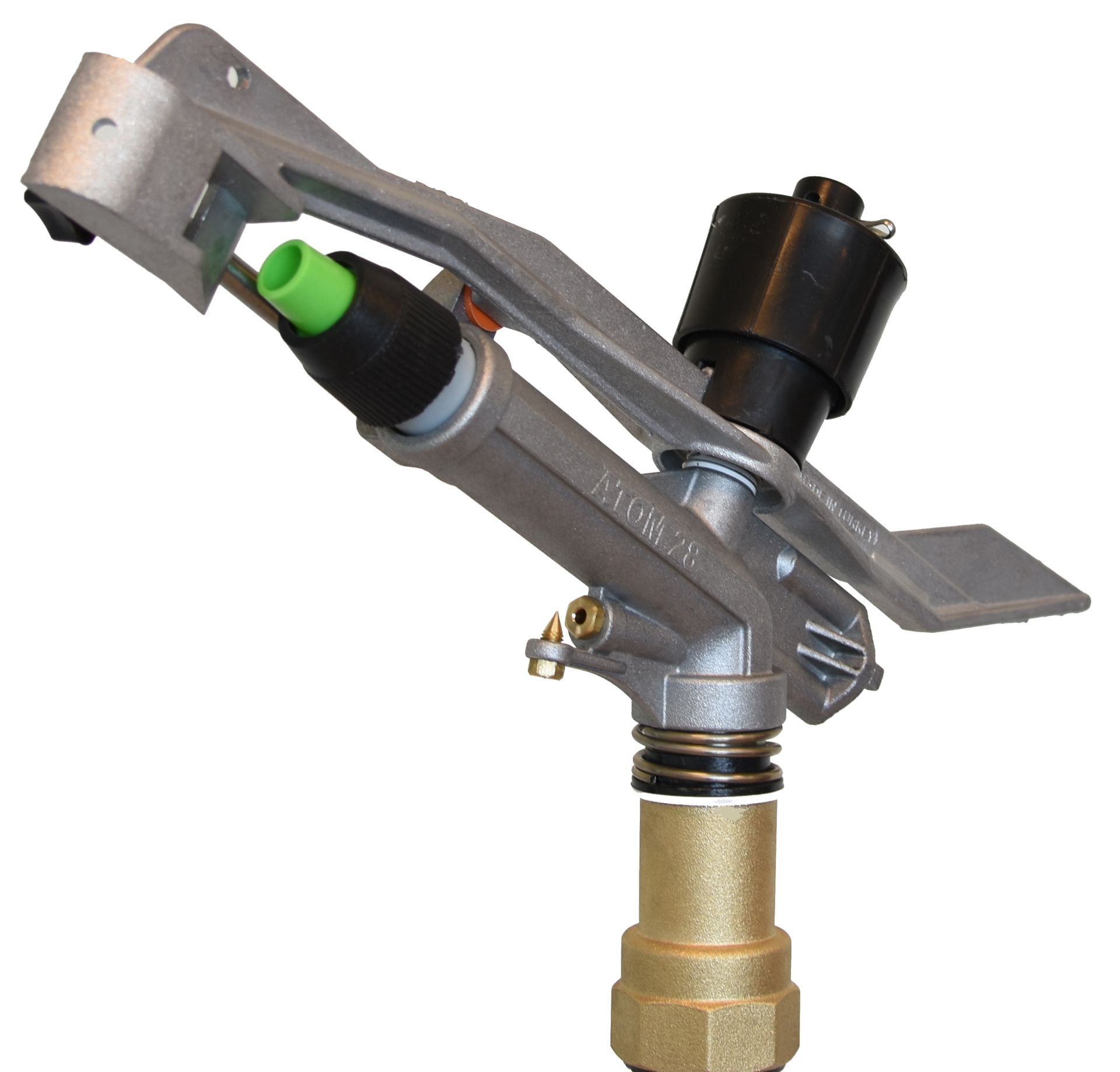

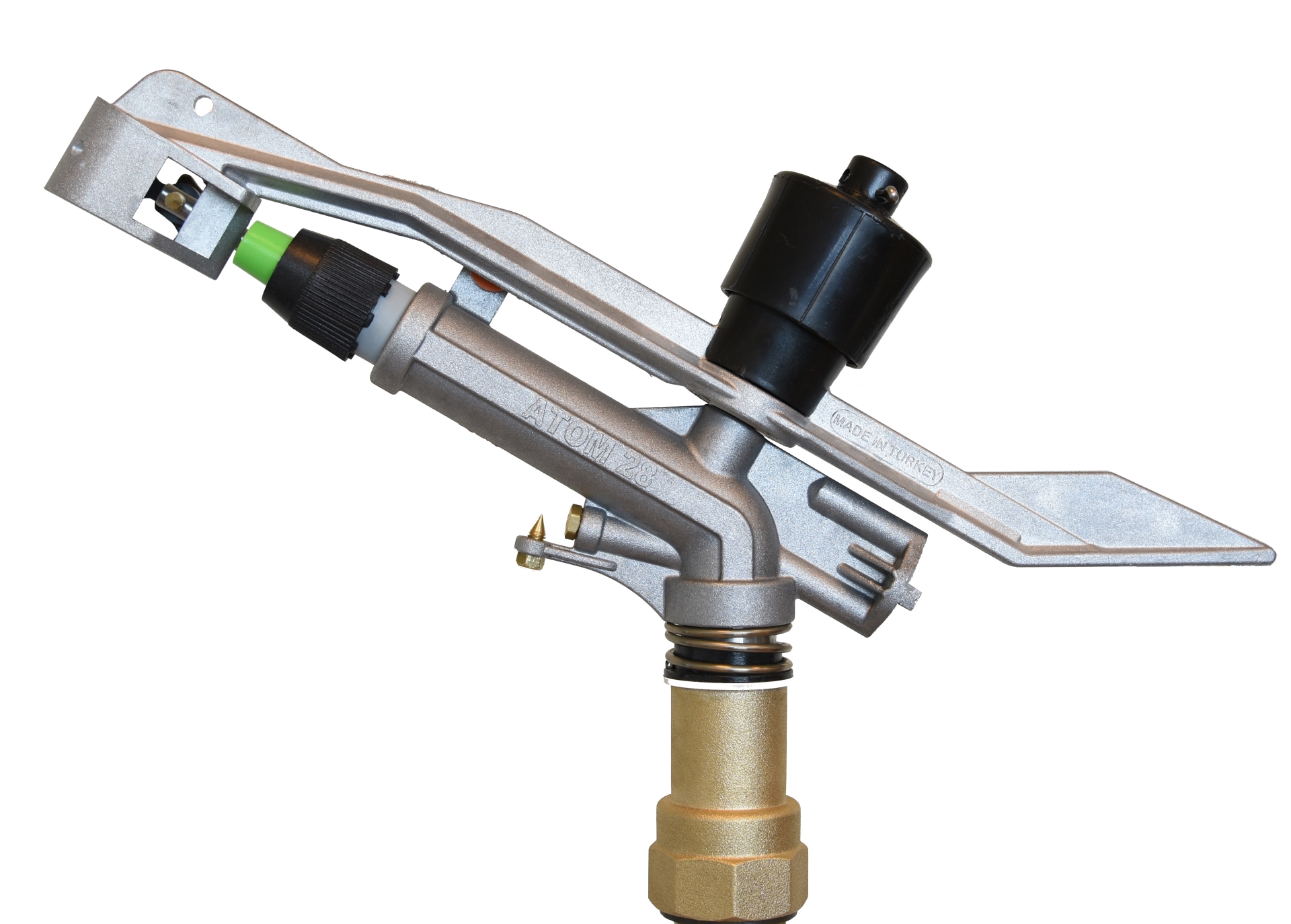

Atom28X FC

Usable Nozzle Diameter Range
10 mm – 14 mm
Water Consumption Range
6,5 m3/h – 18,8 m3/h
Shooting Radius Range
19meter – 28meter
Body Angle
28°

An impact sprinkler that rotates in a full circle. It has double-hole outlet and rotating nozzle is replaceable. It is used for full turn only. It operates at medium and high pressure (2 – 6 bar). With adjustable water breaker, it allows uniform irrigation. And thanks to body angle of 28 degrees, it is less affected by wind compared to its equivalents of 30 and 33 degrees. Main body is aluminium with rotating mechanism of lower body made of aluminium and brass. Latent type sealing system, it serves with sandy water without any problem.

Nozzle Diameter Pressure Jet Length Capacity Irrigated Area Rainfall Per Hour
mm inch kg/cm2 lbs/inch m feet I/min m3/h G.P.M m2 acre mm/h
10 0,39 2 29 19 62 108,3 6,5 29 1134 0,28 5,7
10 0,39 3 44 21 69 130 7,8 34 1385 0,34 5,6
10 0,39 4 56 23 75 151,7 9,1 40 1661 0,41 5,5
10 0,39 5 70 23,5 77 236 10,5 46 1734 0,43 6,1
12 0,47 2 29 21,0 69 152 9,0 40 1385 0,34 6,5
12 0,47 3 44 23,0 75 182 11,2 49 1661 0,41 6,7
12 0,47 4 56 25,5 84 211 13,0 57 2042 0,50 6,4
12 0,47 5 70 26,5 87 236 14,2 63 2205 0,54 6,4
14 0,55 2 29 22,0 72 195 12,0 53 1520 0,38 7,9
14 0,55 3 44 23,5 77 239 14,1 62 1734 0,43 8,1
14 0,55 4 56 27,0 89 277 16,5 73 2289 0,57 7,2
14 0,55 5 70 28,0 92 309 18,8 83 2462 0,61 7,6
