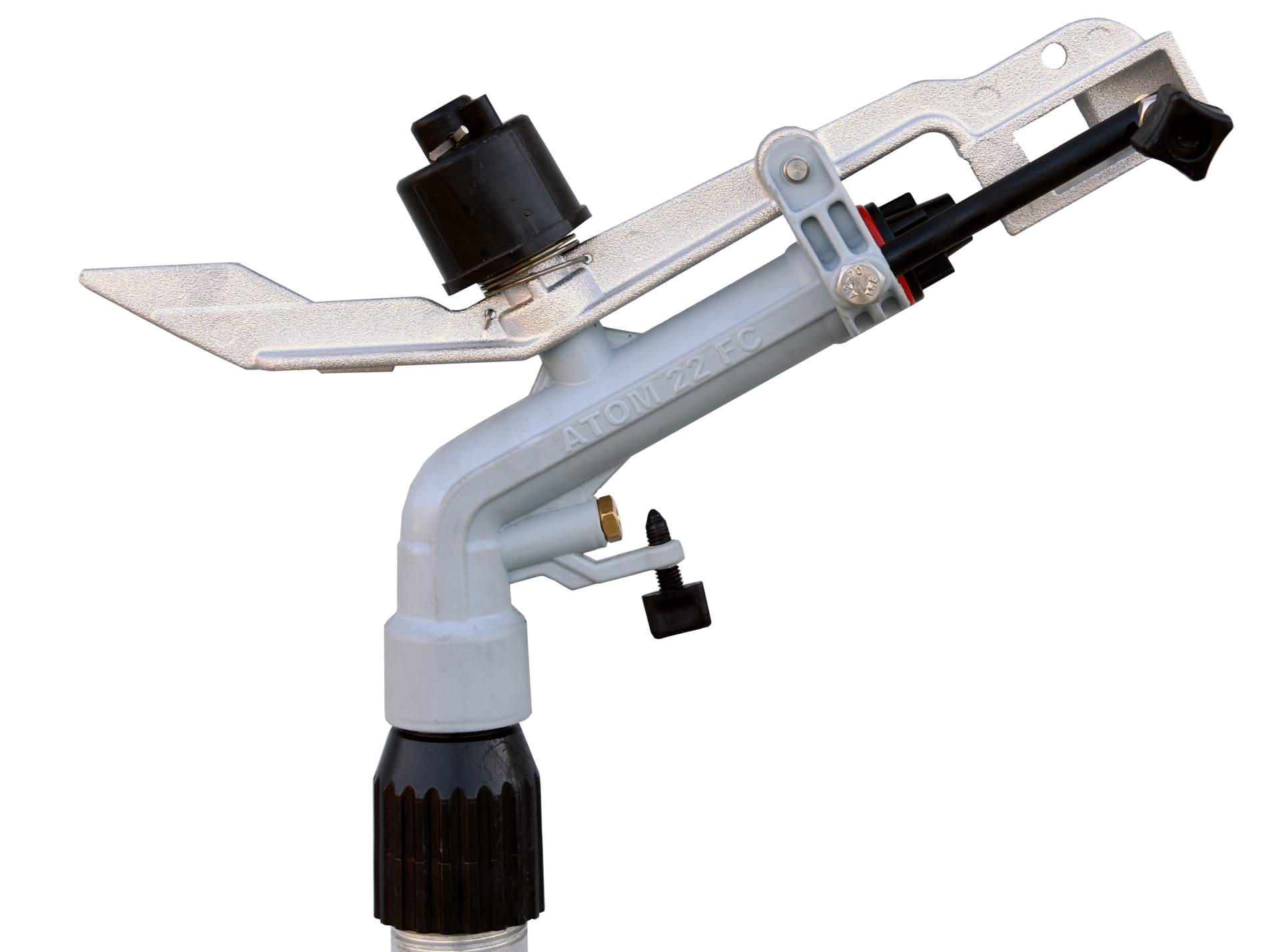

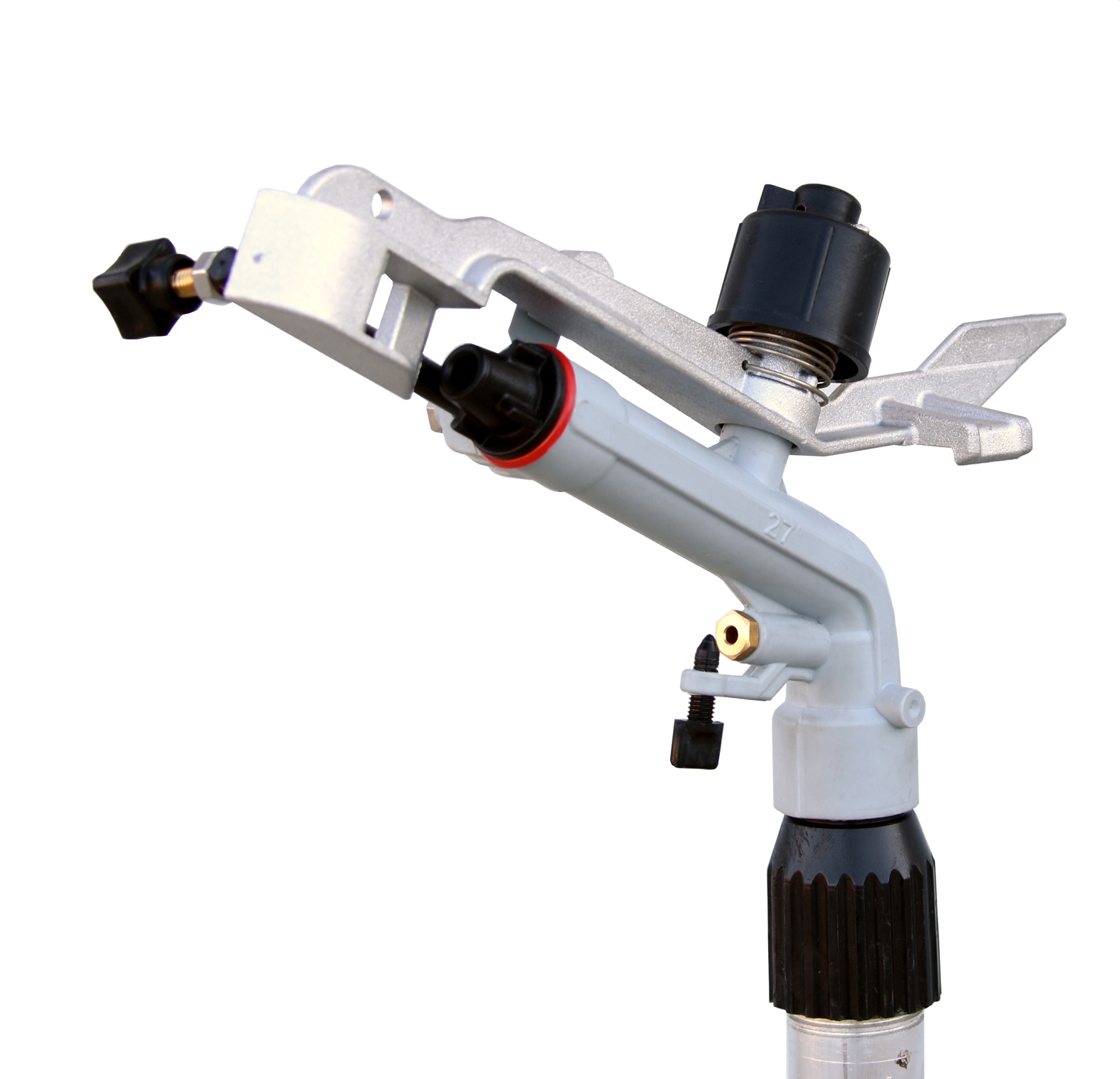

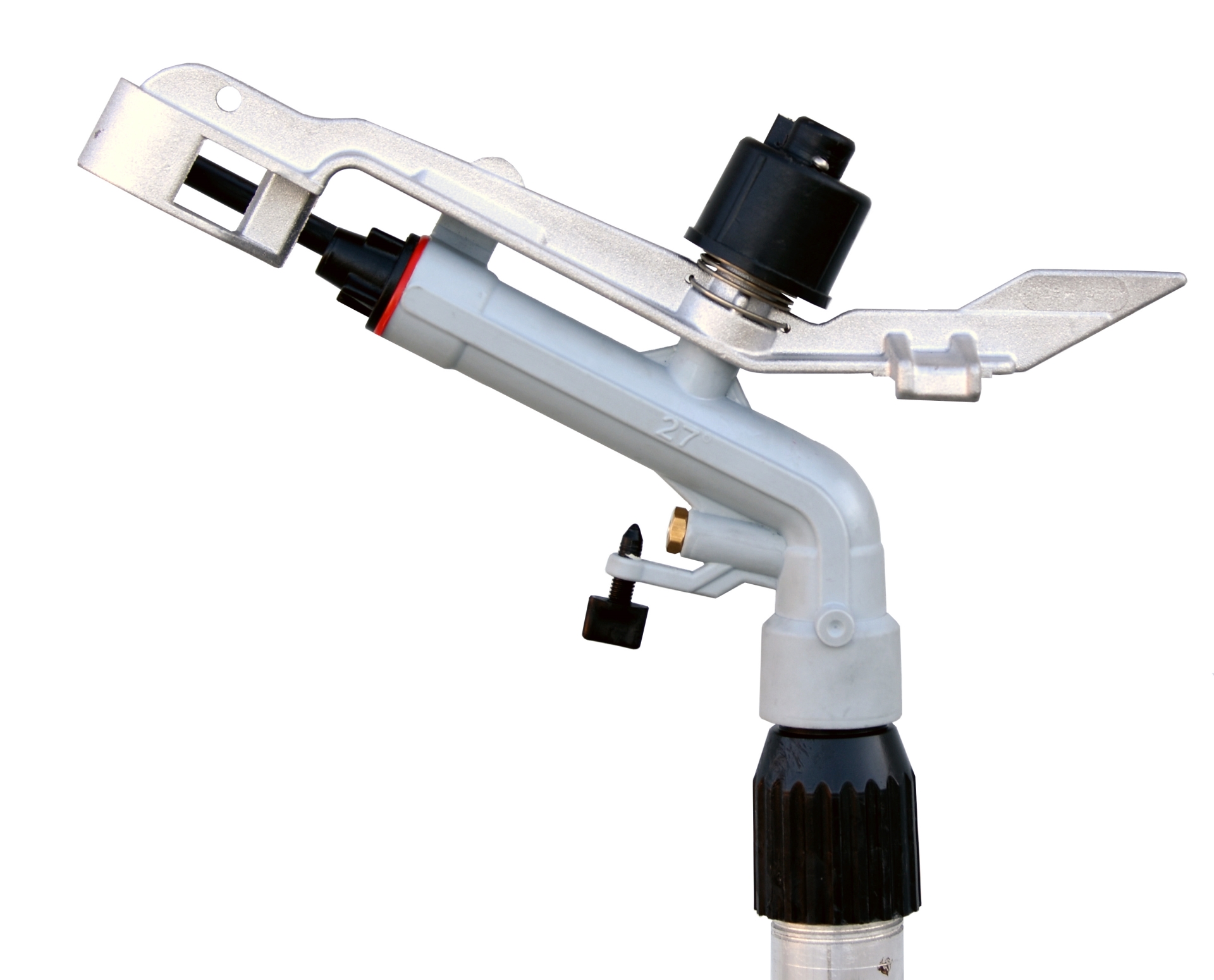

Atom22 ECO

Usable Nozzle Diameter Range
6 mm – 10 mm
Water Consumption Range
2,4 m3/h – 8,6 m3/h
Shooting Radius Range
13meter – 21meter
Body Angle
28°

Highly efficient sprinkler rotating in full circle or partial circle, impact-type, operating at medium pressure (2.0 – 4 atm) Thanks to replaceable sprinkler ends and double-hole water outlet, it ensures you to irrigate your field with uniform water distribution. You may use it for irrigation of any kind of field crops and vegetables. It is appropriate for use with stationary and traveling systems. It may also be used for industrial applications, e.g. at the road edges mines, construction sites and for dust suppression. Thanks to the blind plug that comes with the system as standard, the second hole can be plugged for near-distance irrigation. As it is, it can also be operated with less water.

Nozzle Diameter Pressure Jet Length Capacity Irrigated Area Rainfall Per Hour
mm inch kg/cm2 lbs/inch m feet I/min m3/h G.P.M m2 acre mm/h
6 0,236 1,5 22 13,0 43 40 2,4 11 531 0,13 4,5
6 0,236 2 29 15,0 49 46 2,8 12 707 0,17 4,0
6 0,236 3 44 17,0 56 56 3,4 15 907 0,22 3,7
6 0,236 4 56 18,0 59 65 3,9 17 1017 0,25 3,8
8 0,31 1,5 29 14,5 48 61 3,7 16 660 0,16 5,6
8 0,31 2 44 16,5 54 71 4,3 19 855 0,21 5,0
8 0,31 3 56 18,0 59 86 5,2 23 1017 0,25 5,1
8 0,31 4 70 19,0 62 100 6,0 26 1134 0,28 5,3
10 0,39 2 29 17,0 56 102 6,1 27 907 0,22 6,7
10 0,39 3 44 19,5 64 124 7,4 33 1194 0,29 6,2
10 0,39 4 56 21,0 69 144 8,6 38 1385 0,34 6,2
